.75Hp 115/230V 3450Rpm Sqfl High Sf Psc Motor

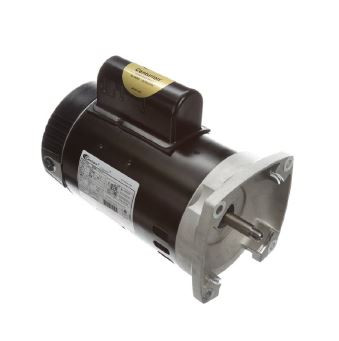

Regal/A.O. Smith .75HP 115/230V 56Y ODP SQFL MOTOR

(No reviews yet) Write a Review

$535.95 $305.95

(You save $230.00)

SKU:

B2847V1

UPC:

786674071637

Availability:

in stock

Description
product review
Shipping & Returns
Facebook comments

Features

Sealed Ball Bearings
50°C Ambient
Stainless Steel Shaft
Switchless
UL 1081 Design
Open Dripproof
Threaded Shaft
Permanent Split Capacitor
Switchless
Square Flange

General Specifications

Model :	B2847V1	Catalog No :	B2847V1
Part Description :	MODEL-CFHP-56FR	Category :	Induction Motors
Stock :	Yes

Nameplate Specifications

Output HP :	3/4 HP	Output KW :	0.56 kW
Frequency :	60 Hz	Voltage :	230/115 V
Current :	SF 6.5/13.0 A	Speed :	3450 RPM
Service Factor :	1.65	Phase :	1
Duty :	Continuous	Insulation Class :	F
Frame :	P56Y	Enclosure :	Drip Proof
Overload Protector :	Thermally Protected	Ambient Temperature :	50 °C
UL :	Recognized	CSA :	Y
CE :	N

Technical Specifications

Electrical Type :	Permanent Split Capacitor, Single Or Dual Voltage	Poles :	2
Rotation :	Counterclockwise Pump End	Mounting :	Round
Motor Orientation :	Horizontal	Drive End Bearing :	BALL BRG
Opp Drive End Bearing :	BALL	Frame Material :	Rolled Steel
Shaft Type :	Threaded	Overall Length :	12.43 in
Frame Length :	8.00 in	Shaft Diameter :	0.625 in
Shaft Extension :	0.91 in	UPC :	786674071637
Weight :	26.00 LB
